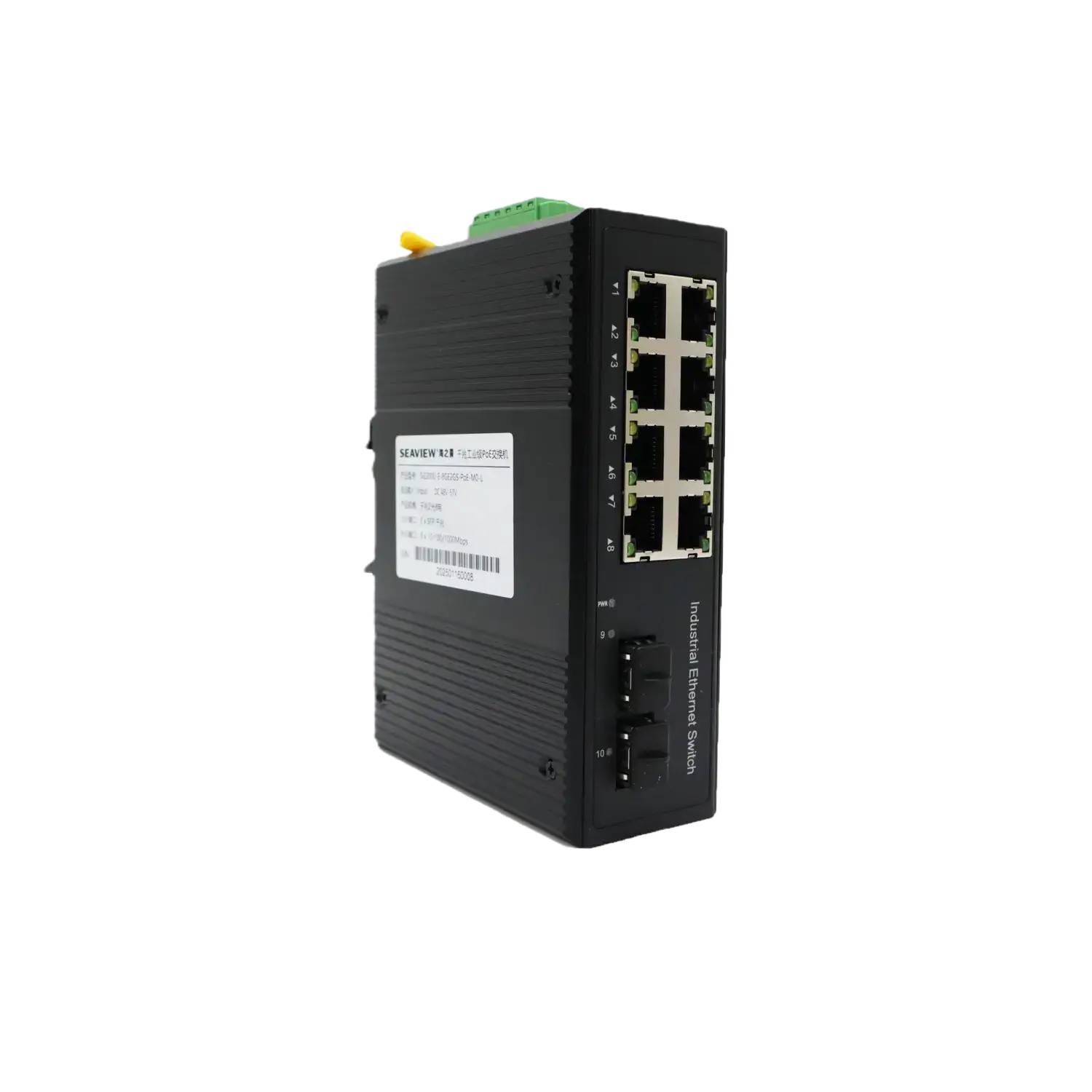

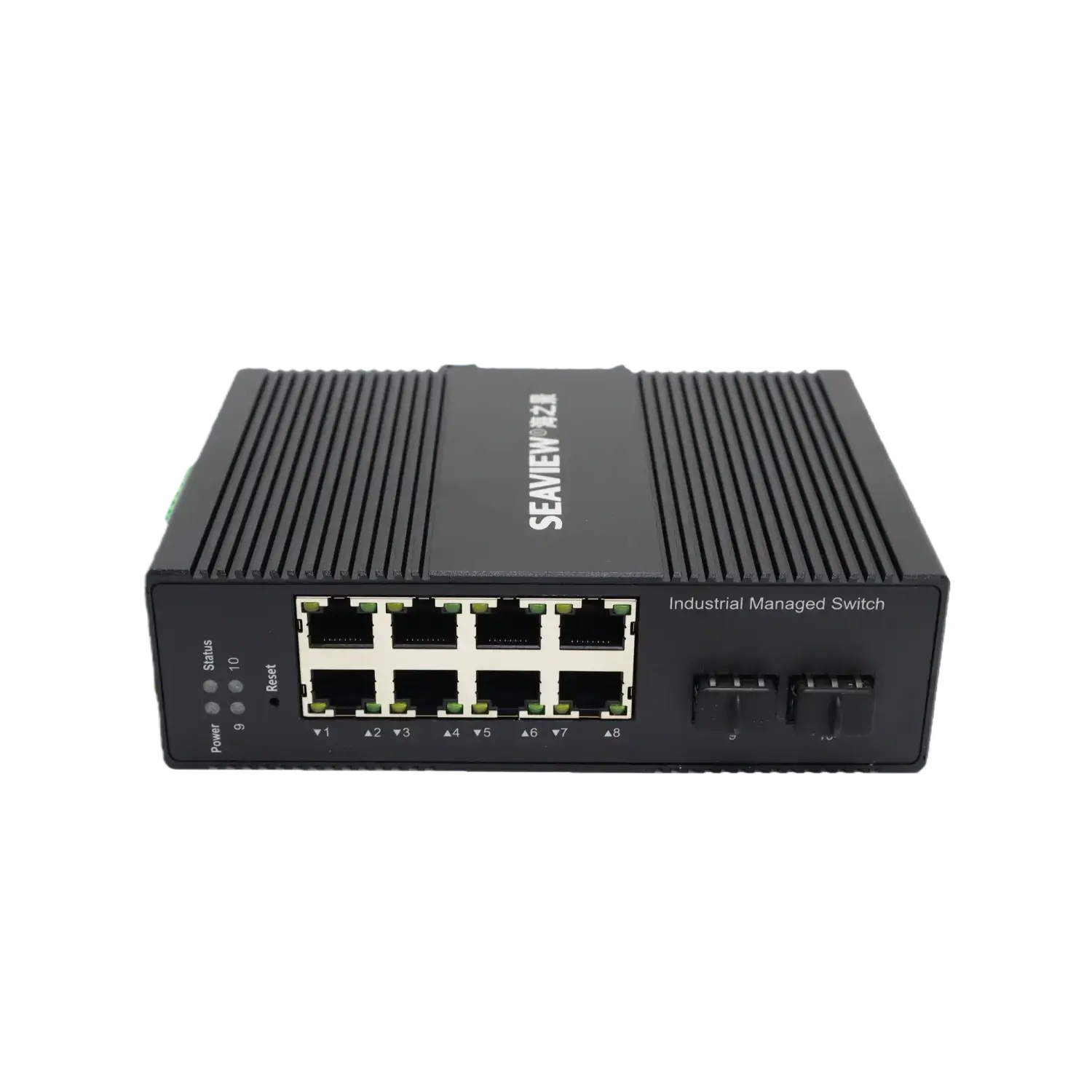

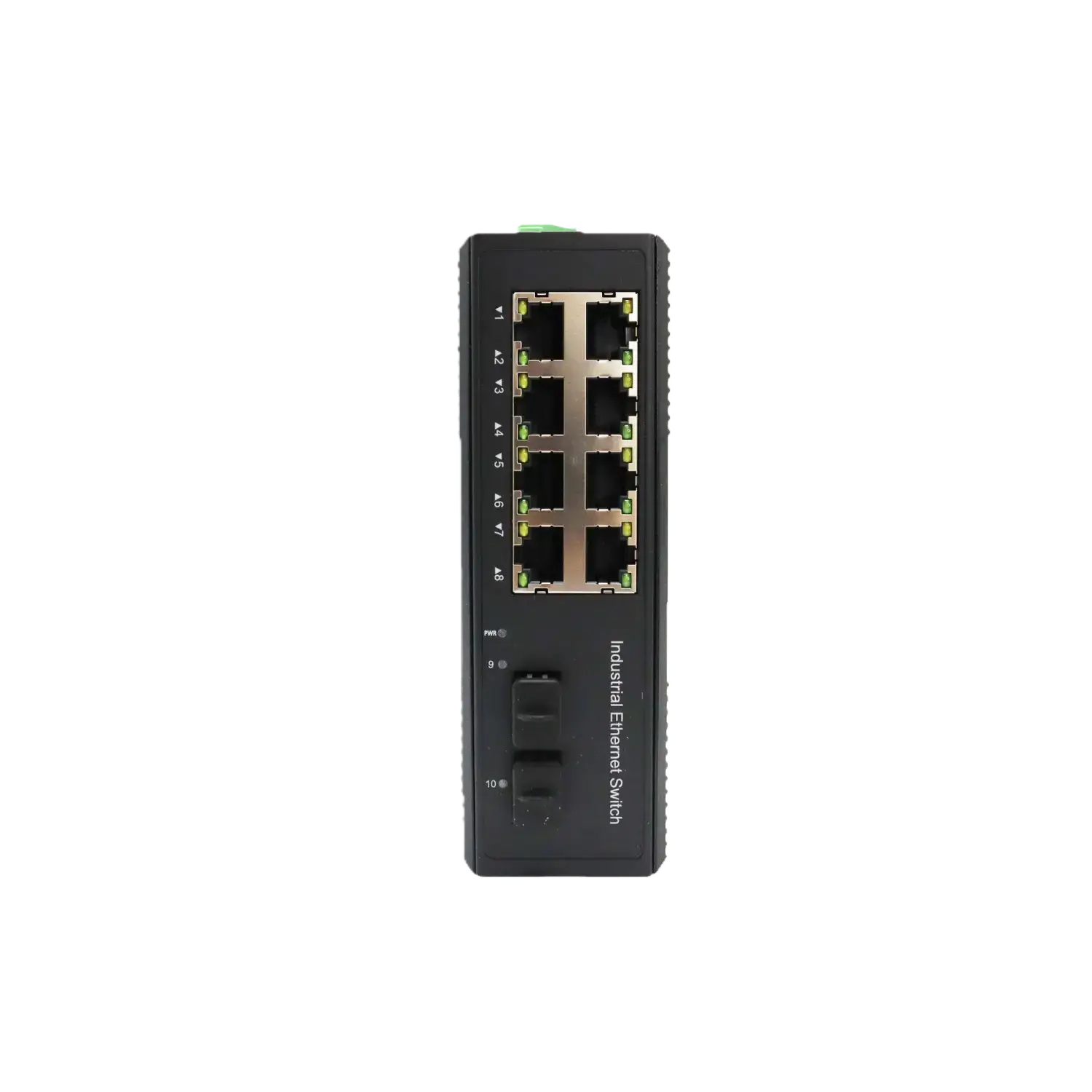

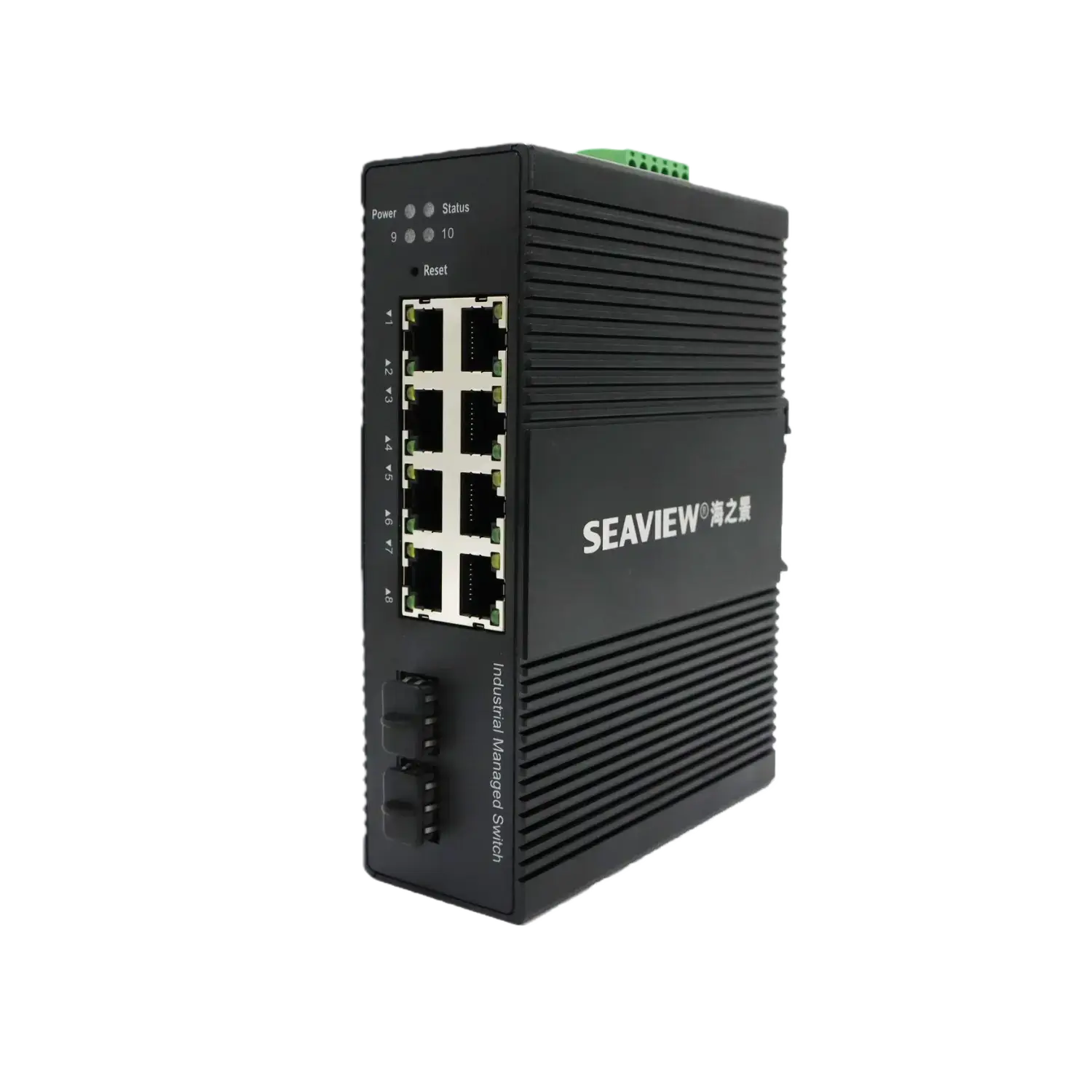

2 SFP Ports + 8 Gigabit Ports Industrial Layer 2 Managed Switch
Model：SIE2000-E-8GE2GS-L2-L
- 8×10/100/1000Base-T RJ45 ports + 2×1000Base-X SFP fiber ports
- Switching capacity: 20Gbps
- Packet forwarding rate: 14.88Mpps
- MAC address table: 8K entries
- Packet buffer: 2M bit
- DC12-52V power input with reverse polarity protection
- Supports G.8032 ERPS ring redundancy protocol (<20ms recovery)
- Supports VLAN/VLAN Classification/QinQ/STP/RSTP/MSTP/Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp
- 6KV surge protection, 8KV contact ESD, 15KV air ESD
- EMI Immunity: Class A
- IP41 protection, fanless DIN-rail design, -40°C to 75°C operating temperature
The SIE2000-E-8GE2GS-L2-L is a full gigabit enhanced Layer 2 managed industrial switch featuring 8×10/100/1000Base-T Ethernet ports and 2×1000Base-X fiber ports. Designed for operation from -40℃ to 75℃, it performs reliably in demanding outdoor cabinet environments. With DIN-rail mounting, IP41 protection, and LED status indicators, it offers plug-and-play industrial deployment. Supporting ERPS multi-ring protection and QoS technology, it ensures optimized bandwidth allocation. Integrated with comprehensive switching and security protocols, it provides robust networking solutions for diverse industrial applications.
Hardware Specifications:
| Hardware Platform | |
| CPU | ARM V7 High-performance Processor |
| Interfaces | |
| Ethernet Ports | 8×10/100/1000Base-T (Auto-sensing) Full/Half duplex MDI/MDI-X (Auto-negotiation) Transmission distance: ≤100m |
| Fiber Ports | 2×1000Base-X Multimode: 850nm (0-550m), 50μm/125μm & 62.5μm/125μm Singlemode: 1310nm (3-40km), 1550nm (0-120km), 9.5μm/125μm |
| Management Port | 1×console (CLI support) |
| Reset Button | Reset |
| Network Protocols | |
| Network Standards | IEEE802.3 - CSMA/CD IEEE802.3i - 10Base-T IEEE802.3u - 100Base-TX/FX IEEE802.3x - Flow Control IEEE802.3z - 1000Base-X IEEE802.3ab - 1000Base-T |
| Switch Attributes | |
| Switching Features | Backplane bandwidth: 20Gbps Forwarding rate: 14.88Mpps MAC table: 8K entries Packet buffer: 2M Latency: <3μs Switching mode: Store-and-forward Power consumption: <6W (non-PoE) |
| Power Parameters | |
| Power Interface | Input voltage: DC12-52V (non-PoE) Terminal: 6-pin 5.08mm pitch Dual power redundancy Reverse polarity protection |
| Operating Environment | |
| Temperature & Humidity | Operating temp: -40～75℃ (-40～167°F) Storage temp: -40～85℃ (-40～185°F) Humidity: 5%～95% (non-condensing) |
| Mechanical Specifications | |
| Mechanical Specs | Enclosure: IP41-rated aluminum alloy Mounting: DIN-rail Cooling: Fanless natural convection Weight: 0.80kg Package weight: 0.90kg Dimensions: 155×115×45mm (L×W×H) |
| LED Indicators | |
| LED Indicators | Power: PWR (red) Fiber ports: 9-10 (green) Ethernet ports: Yellow (Link/ACT), Green (PoE) Status: Status |
| Reliability | |
| MTBF | 300,000 hours |
| Compliance Standards | |
| Industry Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80-1000MHz) IEC(EN)61000-4-4(EFT): Power Port:±4kV; Data Port:±2kV IEC(EN)61000-4-5(Surge): Power Port:±2kV/DM,±4kV/CM; Data Port:±2kV IEC61000-4-6(CS): 10V(150kHz-80MHz) IEC(EN)61000-4-16(CM EMI): 30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
| Warranty | |
| Warranty | 5 years |
Software Specifications:
| Feature Type | Function Description |
| Network Topology | Ring topology: Supported Star topology: Supported Bus topology: Supported Tree topology: Supported Hybrid topology: Supported |
| POE Support (Optional) | PoE ports: 1-8 PoE protocol: 802.3af, 802.3at Pin assignment: 12+,36- PoE management: Supported |
| Layer 2 Switching | Auto-negotiation (MDI/MDIX): Supported VLAN support: 256 VLANs GVRP: Supported Protocol VLAN: Supported Voice VLAN: Supported Surveillance VLAN: Supported MAC VLAN: Supported Link aggregation (802.3ad): Supported LACP: Supported Port speed configuration: Supported Duplex mode: Supported Flow control: Supported Jumbo frame: Supported DHCP client: Supported SNTP client: Supported Port statistics: Supported Port isolation: Supported Energy Efficient Ethernet (EEE): Supported ERPS: Supported LLDP: Supported LLDP 802.1 TLV: Supported MSTP/RSTP/STP: Supported BPDU filter: Supported BPDU guard: Supported PortFast: Supported IGMP Snooping: Supported MLD Snooping: Supported MVR: Supported |
| Layer 3 Features | IPv4 management: Supported IPv6 management: Supported Static IPv4 routing: Supported Static IPv6 routing: Supported ARP: Supported Loopback interface: Supported DHCP server: Supported DNS server: Supported |
| Converged Services | ACL: MAC standard/extended ACL IPv4 standard/extended ACL IPv6 standard/extended ACL QoS: Re-marking support Port trust mode Port rate limiting Egress queue rate limiting SP/WRR scheduling CoS/DSCP/IP precedence mapping |
| Management | User management: Supported System logging: Supported Firmware upgrade: Supported Configuration backup/restore: Supported SNMP: V1/V2/V3 Web GUI: Supported CLI: Supported Telnet/SSH: Supported RMON: Supported |
| Security | Management access control: Supported AAA authentication: Supported 802.1X: Supported MAC-based authentication: Supported Web-based authentication: Supported DoS protection: Supported Dynamic ARP inspection: Supported DHCP Snooping: Supported IP Source Guard: Supported Port security: Supported Port isolation: Supported Storm control: Supported |
| Diagnostics | RAM logging: Supported Flash logging: Supported Port mirroring: 1:1 or 1:M Ping: Supported Traceroute: Supported Electrical port test: Supported SFP module info: Supported UDLD: Supported |
