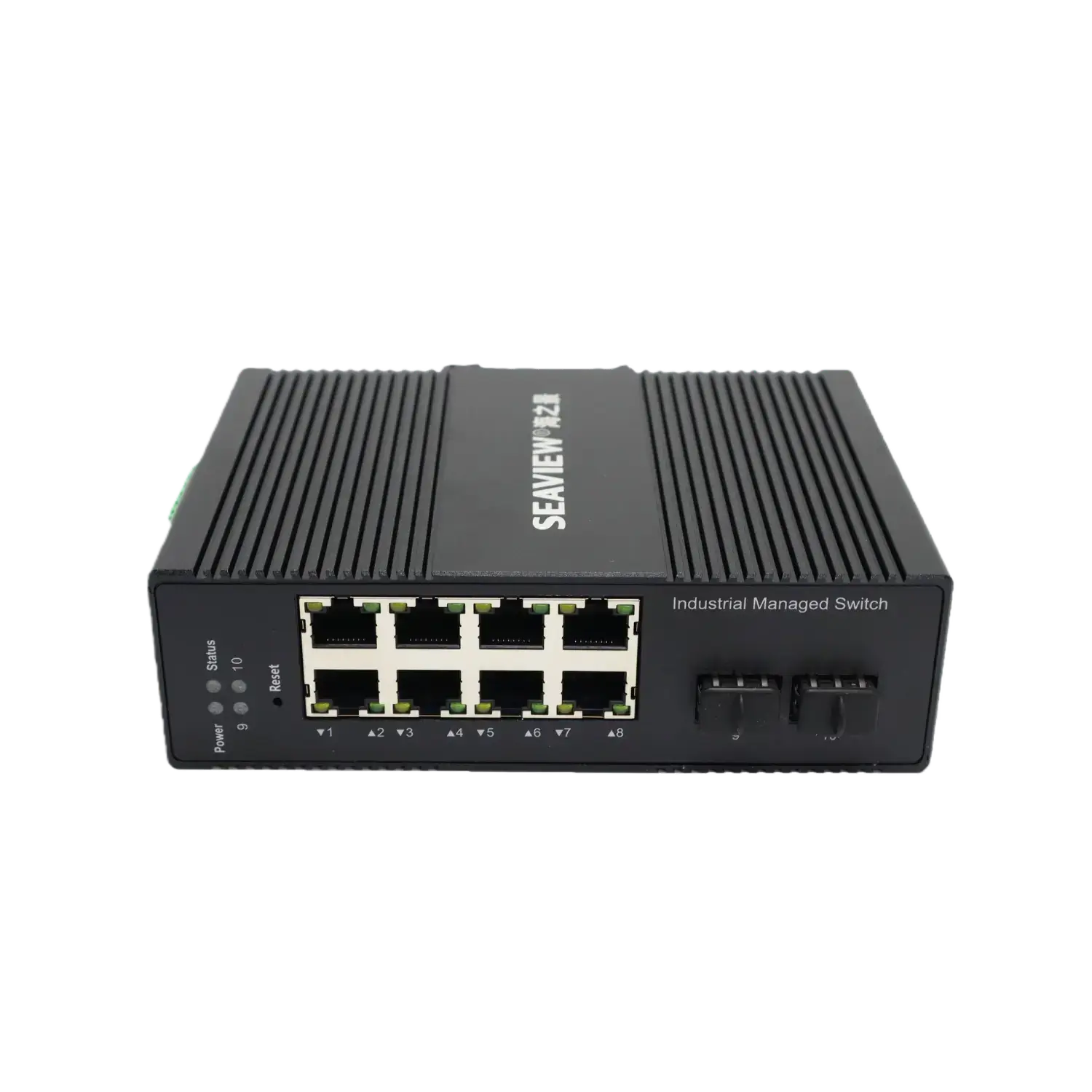

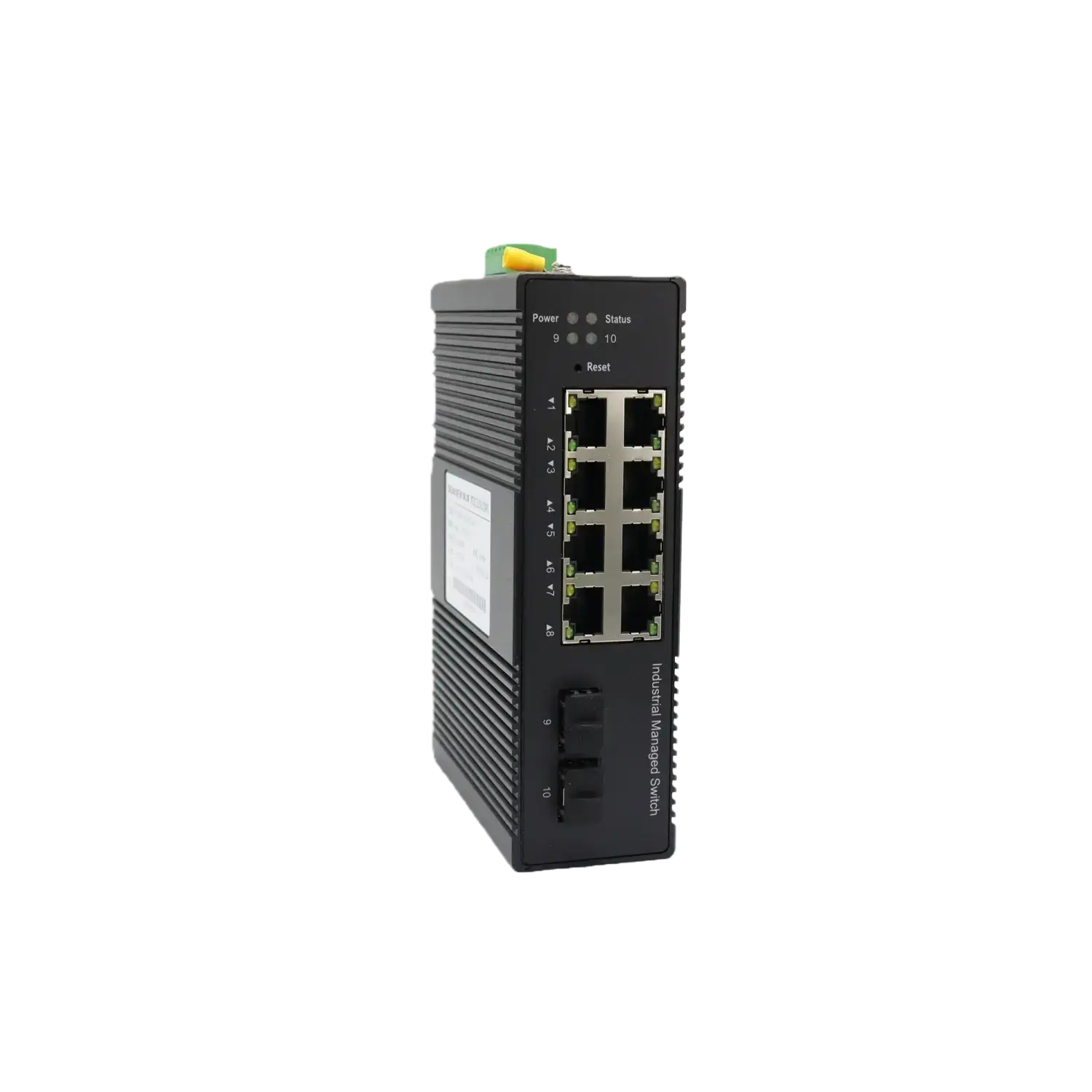

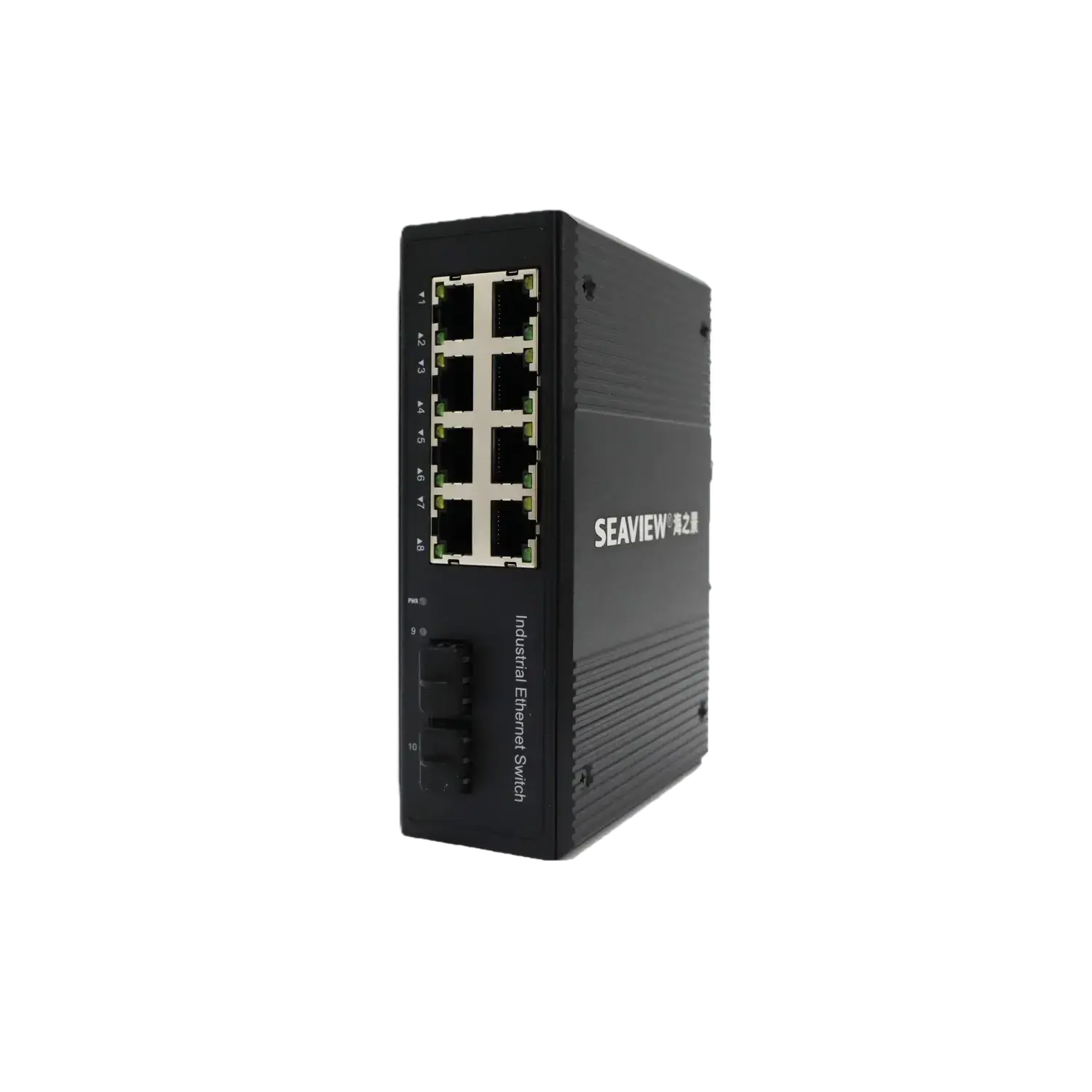

2 SFP Ports + 8 PoE Ports Industrial Layer 2 Managed PoE Switch
Model：SIE2000-E-8GE2GS-POE-L2-L
- 8 × 10/100/1000Base-T and 2 × 1000Base-X SFP Optical Ports
- Built-in 8 PoE+ Ports Compliant with IEEE 802.3af/at Standards
- Switching Capacity: 20Gbps
- Packet Forwarding Rate: 14.88Mpps
- MAC Address Table: 8K
- Packet Buffer: 2M bit
- Operating Power DC48-57V with Reverse Connection Protection
- Supports G.8032 ERPS Ring Redundancy Protocol (<20ms Self-Healing)
- Supports VLAN/VLAN Classification/QinQ/STP/RSTP/MSTP/Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp
- 6KV Surge Protection, 8KV Contact ESD Protection, 15KV Air ESD Protection
- Electromagnetic Interference Resistance: Class A
- IP41 Protection Rating, Fanless DIN Rail Design, Operating Temperature -40°C to 75°C, Max PoE+ Power: 240W
The SIE2000-E-8GE2GS-POE-L2-L is a full-gigabit enhanced Layer 2 managed industrial PoE switch. It supports 8 × 10/100/1000Base-T Ethernet ports and 2 × 1000Base-X optical ports, with all electrical ports compliant with IEEE 802.3af/at PoE standards. Operating at -40°C to 75°C, it withstands harsh outdoor cabinet environments. Featuring DIN rail mounting, IP41 protection, and LED indicators, it supports public Ethernet multi-ring protection (ERPS) and QoS for efficient bandwidth allocation, providing a comprehensive industrial networking solution.
Hardware Specifications:
| Hardware Platform | |
| CPU | ARM V7 High-Performance Processor |
| Interfaces | |
| Ethernet Ports | 8 × 10/100/1000Base-T (Auto-Detection) Full/Half Duplex MDI/MDI-X (Auto-Adaptive) Transmission Distance: ≤100m |
| Optical Ports | 2 × 1000Base-X Multimode: 850nm (0-550M), 50μm/125μm & 62.5μm/125μm Singlemode: 1310nm (3-40KM), 1550nm (0-120KM), 9.5μm/125μm |
| Management Port | 1 × Console (Supports CLI) |
| Reset Button | Reset |
| Network Protocols | |
| Network Standards | IEEE802.3 - CSMA/CD IEEE802.3i - 10Base-T IEEE802.3u - 100Base-TX/FX IEEE802.3x - Flow Control IEEE802.3z - 1000Base-X IEEE802.3ab - 1000Base-T |
| Switch Attributes | |
| Switching Features | Backplane Bandwidth: 20Gbps Packet Forwarding Rate: 14.88Mpps MAC Table: 8K Packet Buffer: 2M Latency: <3μs Switching Mode: Store-and-Forward Power Consumption: <6W (Non-PoE) |
| POE | |
| POE Parameters | PoE Standard: IEEE802.3af/at Max per Port: 15.4W (IEEE 802.3af) Max per Port: 30W (IEEE 802.3at) Compatibility: IEEE 802.3af/at/Auto-Adaptive Output Voltage: DC 48-57V Power Pins: 1/2+, 3/6- |
| Power Parameters | |
| Power Interface | Input Voltage: DC48-57V (PoE) Terminal: 6-pin 5.08mm Spacing Dual Power Redundancy Support Reverse Polarity Protection |
| Operating Environment | |
| Temperature & Humidity | Operating Temp: -40~75℃ (-40~167°F) Storage Temp: -40~85℃ (-40~185°F) Humidity: 5%~95% (Non-Condensing) |
| Mechanical Features | |
| Mechanical Specs | Enclosure: IP41 Aluminum Alloy Installation: DIN Rail Mounting Cooling: Natural Convection (Fanless) Weight: 0.80Kg Packaged Weight: 0.90Kg Dimensions: 155×115×45mm (L×W×H) |
| LED Indicators | |
| LED Indicators | Power: PWR (Red) Optical Ports: 9-10 (Green) Ethernet Ports: Yellow (Link/ACT), Green (PoE) Status Indicator: Status |
| Mean Time Between Failures | |
| MTBF | 300,000 Hours |
| Industry Standards | |
| Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80-1000MHz) IEC(EN)61000-4-4(EFT): Power Port:±4kV; Data Port:±2kV IEC(EN)61000-4-5(Surge): Power Port:±2kV/DM,±4kV/CM; Data Port:±2kV IEC61000-4-6(CS):10V(150kHz-80MHz) IEC(EN)61000-4-16(CM EMI):30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
| Warranty | |
| Warranty | 5 Years |
Software Specifications:
| Feature Type | Function Description |
| Network Topology | Ring Topology: Supported Star Topology: Supported Bus Topology: Supported Tree Topology: Supported Hybrid Topology: Supported |
| POE Support (Optional) | PoE Ports: Ports 1-8 PoE Protocol: 802.3af, 802.3at Pin Assignment: 12+,36- PoE Management: Supported |
| Layer 2 Switching | Auto-Negotiation (MDI/MDIX): Supported VLAN Support & Quantity: 256 GVRP: Supported Protocol VLAN: Supported Voice VLAN: Supported Surveillance VLAN: Supported MAC VLAN: Supported EtherChannel/Link Aggregation (802.3ad): Supported LACP: Supported Interface Speed: Supported Duplex Mode: Supported Flow Control: Supported Jumbo Frame: Supported DHCP Client: Supported SNTP Client: Supported Port Statistics: Supported Protected Ports: Supported EEE: Supported ERPS: Supported LLDP: Supported LLDP 802.1 TLV: Supported MSTP/RSTP/STP: Supported STP BPDU Filter: Supported STP BPDU Guard: Supported STP Port Fast: Supported IGMP Snooping: Supported MLD Snooping: Supported MVR: Supported |
| Layer 3 Features | IPv4 Management Address: Supported IPv6 Management Address: Supported Static IPv4 Routes: Supported Static IPv6 Routes: Supported ARP: Supported Loopback Interface: Supported DHCP Server: Supported DNS Server: Supported |
| Convergence Services | ACL: MAC Standard/Extended ACL IPv4 Standard/Extended ACL IPv6 Standard/Extended ACL QoS: QoS Remarking Port Trust Port Rate Limiting Egress Queue Rate Limiting SP, WRR Scheduling Algorithms CoS Mapping, DSCP Mapping, IP Precedence Mapping |
| Management | User Management: Supported System Log: Supported Firmware Upgrade: Supported Configuration File Download/Upload: Supported SNMP: V1/V2/V3 Supported Web Management: Supported CLI: Supported Telnet/SSH: Supported RMON: Supported |
| Security | Management Channel Configuration: Supported AAA Authentication: Supported 802.1X Authentication: Supported MAC-Based Authentication: Supported Web-Based Authentication: Supported DoS Protection: Supported Dynamic ARP Inspection: Supported DHCP Snooping: Supported IP Source Guard: Supported Port Security: Supported Protected Ports: Supported Storm Control: Supported |
| Diagnostics | RAM Log: Supported Flash Log: Supported Port Mirroring: 1:1 or 1:M Ping: Supported Traceroute: Supported Electrical Port Test: Supported Optical Module Info: Supported UDLD Protocol: Supported |
