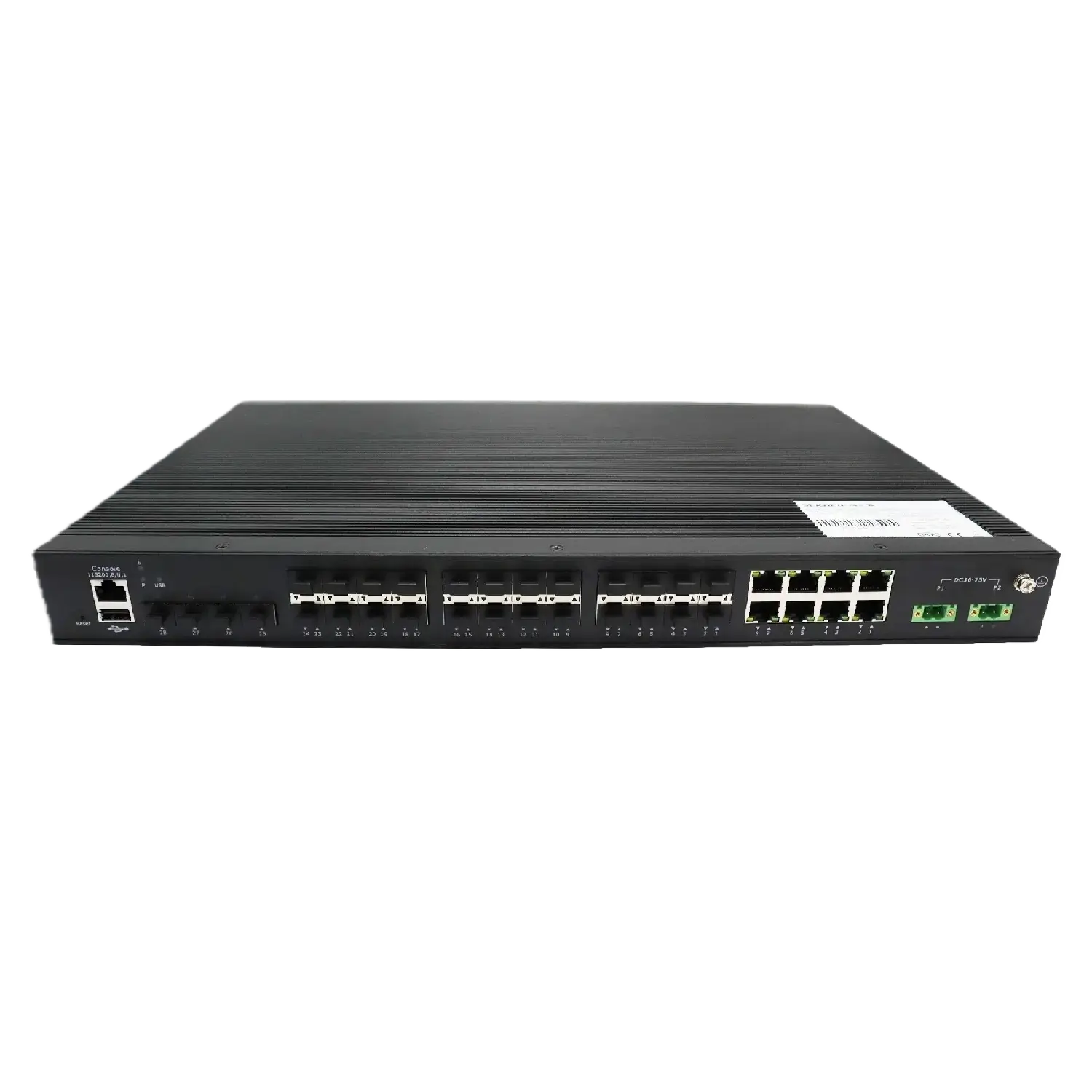

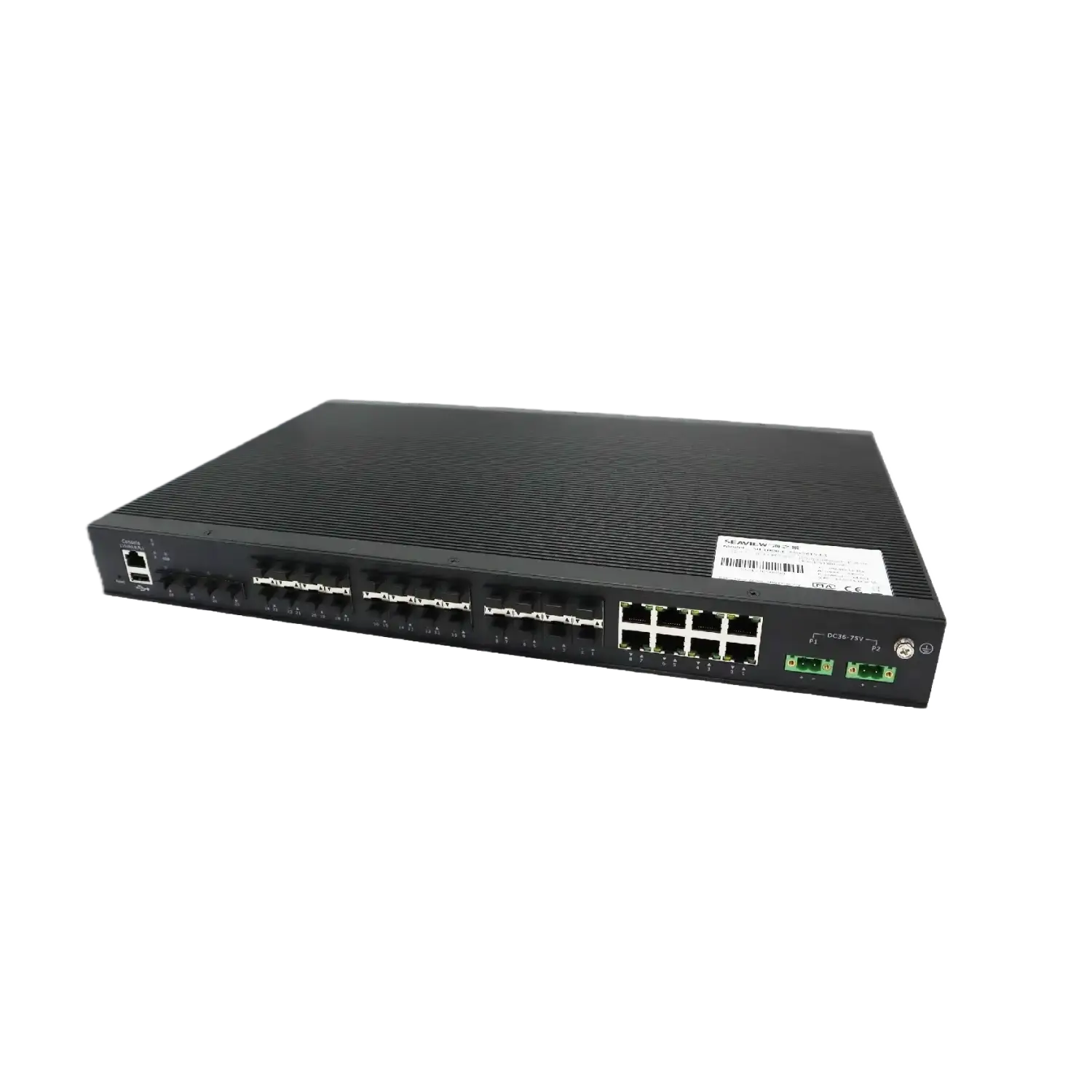

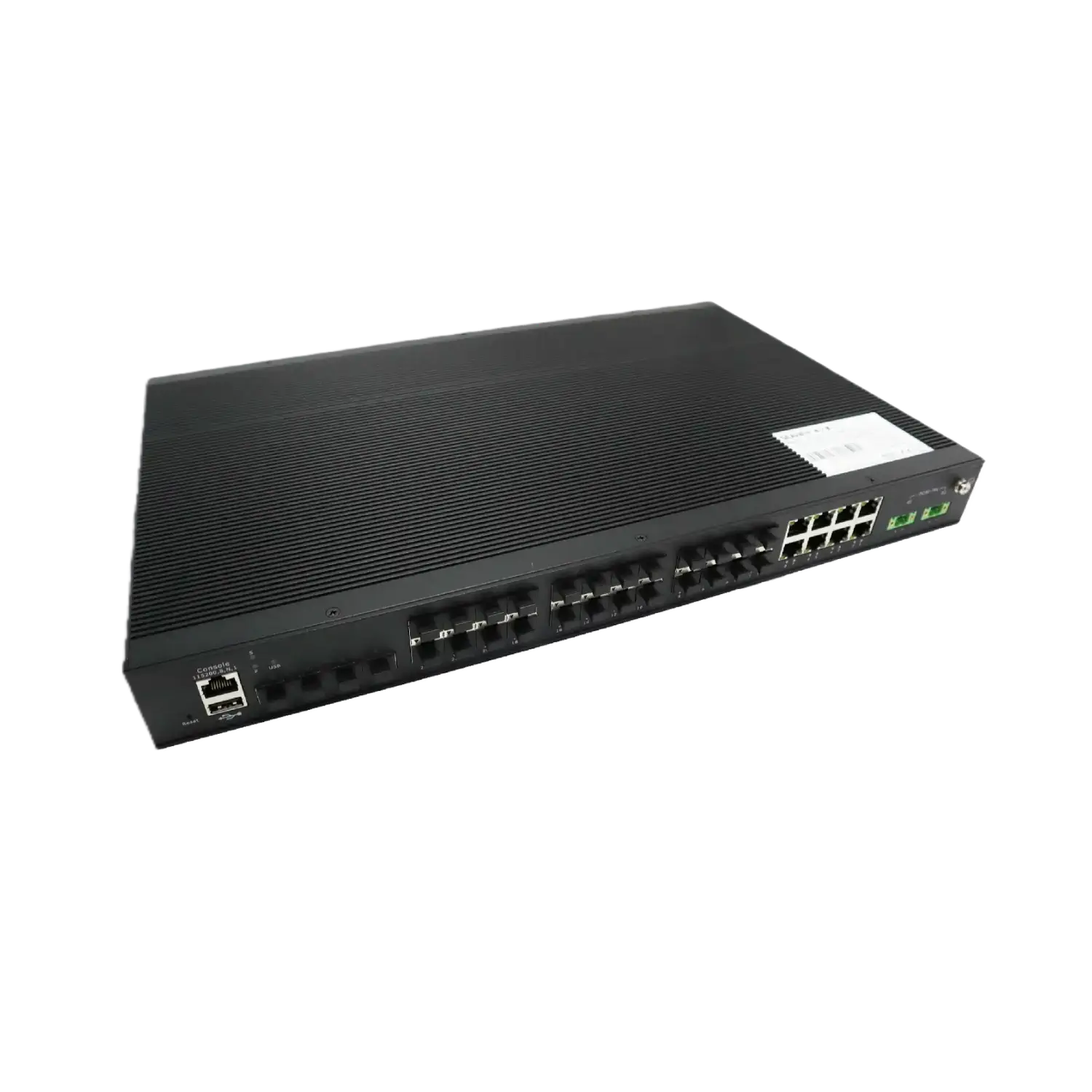

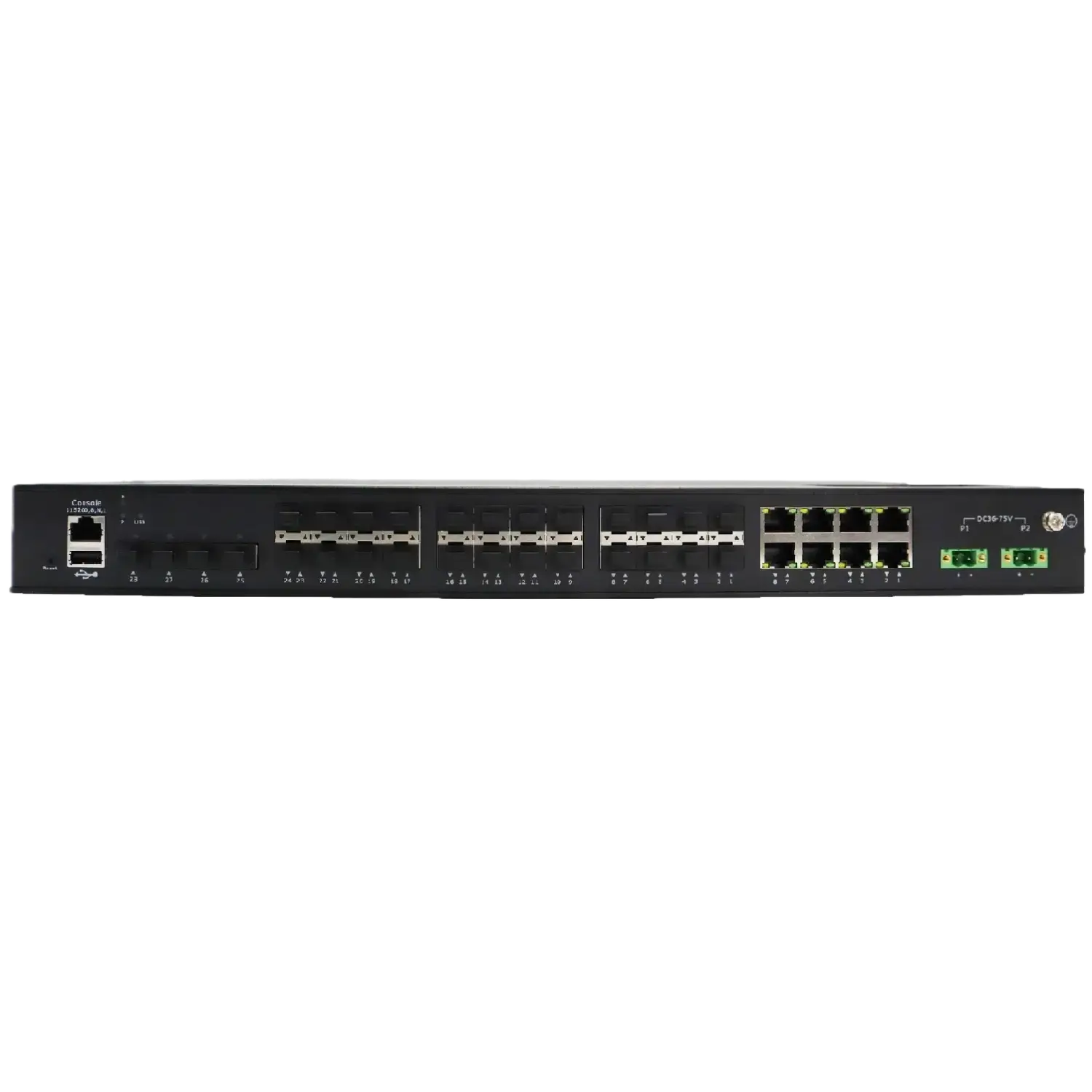

24 SFP + 8 Copper + 4 10G SFP+ Industrial Layer 3 Managed Switch
Model：SIE1000-E-24GSC8GT4TS-L3
- Switching capacity: 128Gbps
- Packet forwarding rate: 95.23Mpps
- MAC address table: 16K entries
- Packet buffer: 12M bit
- Jumbo frame: Supports 10KBytes
- VLAN: 4K
- 24×1G/2.5G SFP ports, 8×Gigabit copper ports, 4×10G SFP+ ports
- DC input range 36-75V, AC input range 100-240V
- Dual DC/dual AC or hybrid AC/DC power input with over-voltage/over-current protection
- Supports USB zero-configuration deployment and firmware upgrades
- Supports RIP/OSPF/BGP4/IS-IS/ECMP/VRRP routing protocols
- Supports ERPS / STP / RSTP / MSTP / VLAN/ QinQ/ Port Mirroring / Multicast / ACL / IGMP / QoS / LLDP / 802.1X/ Dying Gasp / SFP DDM / RMON / DHCP / RADIUS / IPv6 management / Web / SNMP / Telnet / TFTP / Web upgrading
- 6KV surge protection, 8KV contact ESD, 15KV air ESD
- EMI Immunity: Class A
- IP41 protection, fanless rack-mount design, operating temperature -40°C to 75°C
The SIE1000-E-24GSC8GT4TS-L3 is an industrial Layer 3 managed switch featuring 24×1G/2.5G SFP ports, 8×Gigabit combo ports, and 4×10G SFP+ uplinks. Designed for operation from -40℃ to 75℃ with Class A EMI immunity, it uses low-power components and optimized thermal management with 100% burn-in testing. With dual redundant 36-75V DC or 100-240V AC inputs, it ensures reliable performance in harsh outdoor cabinet environments. Supporting RIP/OSPF/BGP4/IS-IS/ECMP/VRRP Layer 3 routing and comprehensive Layer 2 management features, it is ideal for expressways, rail transit, smart cities, energy infrastructure, and other high-bandwidth industrial applications.
Hardware Specifications:
| Interface Parameters | |||||
| Fiber Ports | 16×100/1000Base-X 4×1G/2.5G/10GBase-X Multimode: 850nm (0-550m), 50μm/125μm & 62.5μm/125μm Singlemode: 1310nm (3-40km), 1550nm (0-120km), 9.5μm/125μm |
||||
| Combo Ports | 8×1000Mbps (RJ45/SFP) RJ45 supports auto-sensing, full/half duplex MDI/MDI-X, transmission distance ≤100m |
||||
| USB Interface | USB2.0 Type A | ||||
| Management Port | 1×console | ||||
| Network Protocols | |||||
| Network Standards |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE 802.3ae 10GBase-X Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP |
||||
| Switch Attributes | |||||
| Switching Features | Backplane bandwidth: 128Gbps Forwarding rate: 95.23Mpps MAC table: 16K entries Packet buffer: 12M Jumbo frame: 10KBytes Watchdog: Supported Switching mode: Store-and-forward Forwarding delay: <5μs Power consumption: <25W (non-PoE) |
||||
| Power Parameters | |||||
| Power Interface | Input voltage: 2×36-75VDC; 1×100-240VAC, 50/60Hz Input current: 0.8A Max DC input: Removable 2P terminal block (screw-type), 5.08mm pitch, dual power redundancy AC input: Removable 3P terminal block (screw-type), 7.62mm pitch, dual power redundancy Dual power redundancy Reverse polarity protection Over-voltage protection Over-current protection |
||||
| Environment & Mechanical | |||||
| Operating Environment | Operating temp: -40～75℃ (-40～167°F) Storage temp: -40～85℃ (-40～185°F) Relative humidity: 10%～90% (non-condensing) |
||||
| Mechanical Specifications | Enclosure: IP41-rated metal housing Mounting: Rack-mountable, desktop Cooling: Fanless natural convection Weight: 5.3kg Dimensions: 440×280×45mm (L×W×H) |
||||
| LED Indicators | |||||
| LED Indicators | P: Power | On: Normal power supply Off: No power or abnormal power |
|||
| S: System Status | On: Normal operation Flashing: Initializing Off: No power or system fault |
||||
| USB: USB Status | On: USB device detected Flashing: Reading USB data Off: No USB device or unrecognized |
||||
| 1-8 (Combo) 9-24: Fiber Ports |
On: Link UP Flashing: Data transmission Off: Link DOWN |
||||
| 1-8 (Combo) Copper Ports |
|
||||
| Reliability | |||||
| MTBF | 300,000 hours | ||||
| Compliance Standards | |||||
| Industry Standards | EMI: FCC Part 15B Class A EMS: Power surge: IEC 61000-4-5 6KV/4KV (8/20μs) Port surge: IEC 61000-4-5 6KV/4KV (10/700μs) Radiated immunity: IEC 61000-4-3 80MHz-1GHz: 10V/m EFT immunity: IEC 61000-4-4 6KV/4KV Conducted immunity: IEC 61000-4-6 10V ESD immunity: IEC 61000-4-2 8KV/15KV |
||||
| Warranty | |||||
| Warranty | 5 years | ||||
Software Specifications:
| Feature Type | Function Description | |
| Network Topology | Ring topology: Supported Star topology: Supported Bus topology: Supported Tree topology: Supported Hybrid topology: Supported |
|
| Link Aggregation | GE port aggregation 2.5GE port aggregation 10GE port aggregation Static aggregation Dynamic aggregation (LACP) |
|
| Port Features | IEEE802.3x flow control Port statistics Port isolation Storm control based on port rate percentage |
|
| MAC Address Table | Static MAC management Dynamic MAC management Filtering MAC addresses MAC limit per port/VLAN MAC flapping detection per port/VLAN |
|
| VLAN | Access mode Trunk mode Hybrid mode |
|
| VLAN Classification | MAC-based VLAN IP-based VLAN Protocol-based VLAN |
|
| GVRP | Normal mode Fixed mode Forbidden mode |
|
| QinQ | Port-based QinQ VLAN-based QinQ Flow-based QinQ |
|
| Port Mirroring | Many-to-one mirroring | |
| Layer 2 Ring Protocols | STP/RSTP/MSTP (IEEE 802.1w/D) G.8032 ERPS (single ring, sub-ring association) Loop detection (port-based, port+VLAN-based) |
|
| DHCP | DHCP client DHCP server DHCP snooping (trusted port, remote-id/circuit-id configuration) |
|
| Multicast | IGMP snooping | |
| ARP | ARP aging | |
| IPv4 | Static routing | |
| IPv6 | Static routing | |
| Equal-cost Multipath | ECMP Configurable maximum next-hop count Load balancing configuration |
|
| Route Policy | IPv4 prefix-list | |
| VRRP | Virtual Router Redundancy Protocol | |
| IP Routing Protocols | RIPv1/v2 OSPFv2 BGP4 (ECMP recursive routing) Neighbor status monitoring IS-ISv4 |
|
| ACL | Standard IP ACL Extended MAC ACL Extended IP ACL (L2/L3/L4 matching) IPv6 ACL |
|
| QoS | Priority remarking/remapping SP/WRR queue scheduling Ingress rate limiting Egress rate limiting Policy-based QoS |
|
| Security Features | 802.1X (port/mac authentication, RADIUS) Port security IP source guard (IP/port/MAC binding) ARP check (illegal ARP filtering) Access control (Telnet/SSH/HTTP/HTTPS) Port isolation |
|
| Management & Maintenance | LLDP User management (authentication, privilege levels) SNMPv1/v2c/v3 Web management (HTTP/HTTPS) Syslog (hierarchical alerts) RMON NTP Temperature monitoring Ping/Tracert/Dying gasp SFP DDM monitoring Copper cable diagnostics Configuration import/export (FTP/TFTP/USB) Dual firmware partitions Telnet server/client SSH server TACACS+ sFlow traffic analysis Firmware upgrade (TFTP/WEB) IPv6 management |
|
