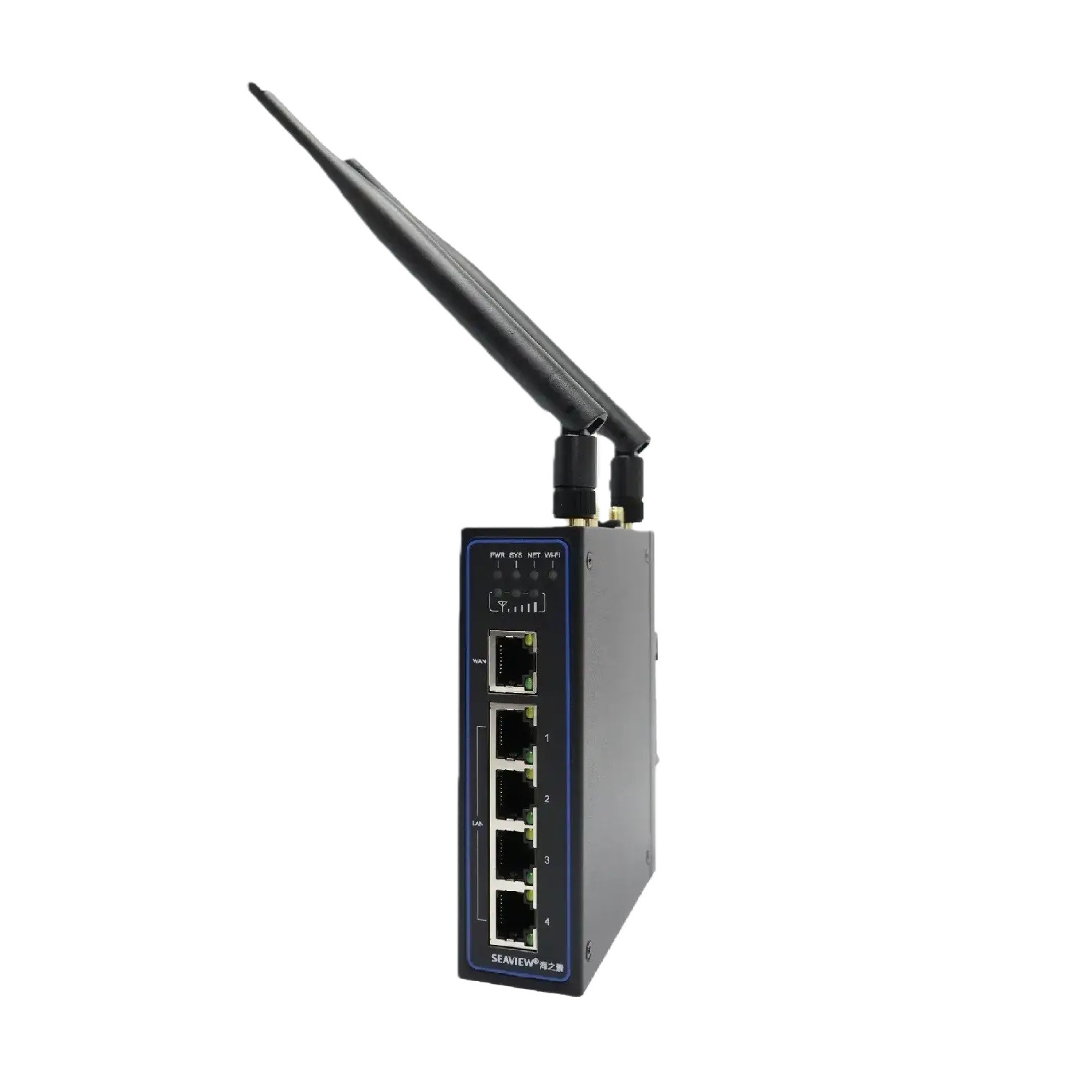

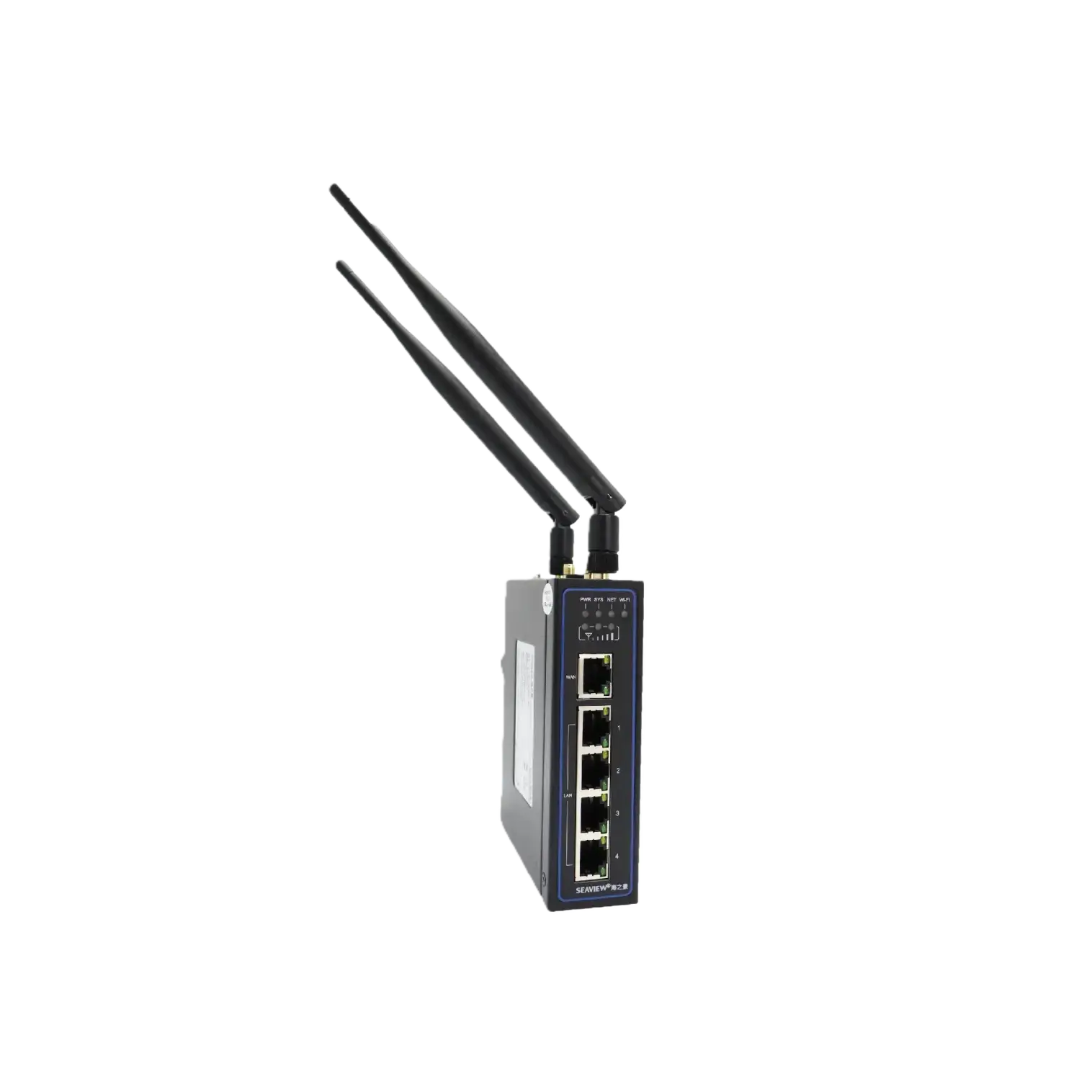

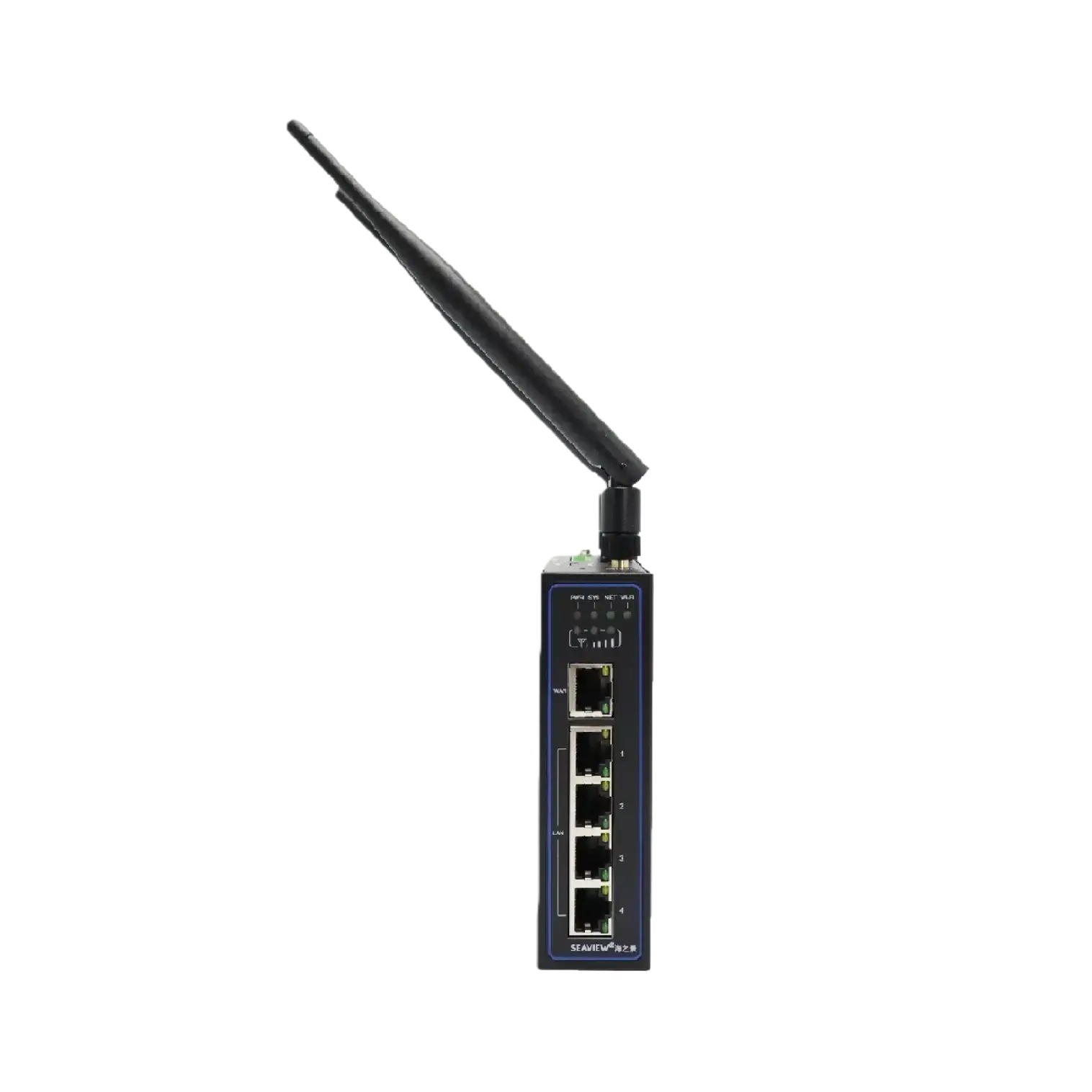

5G Economical Multi-Port Industrial Router
Model：SIE2000L5
- 5G Economical Multi-Port Industrial Router
- 5G high-speed networking, dual-SIM stability, WiFi connectivity
- Dual-SIM switching, VRRP backup mechanism
- Rich industrial interfaces, multi-protocol support
- Secure, stable, and rich routing protocols
- Wide temperature range: -30°C to 70°C
- 1×WAN + 4×LAN (100 Mbps), 2.4G WiFi, 1×RS232, 1×RS485, 2×SIM
I. Product Overview
The SIE2000L5 is an IoT wireless router integrating 5G network, Wi-Fi and VPN technologies, providing simple, reliable and secure internet connectivity. Designed for unattended site communications, it employs hardware/software watchdogs and multi-level link detection mechanisms to ensure communication stability and reliability. It also supports device cloud management platform for remote intelligent device management.
The SIE2000L5 is suitable for various industrial and commercial IoT applications, providing efficient and reliable solutions for digital IoT. With its outstanding product features, easy deployment and comprehensive remote management, it helps customers achieve efficient operations in the wave of digital transformation.
II. Product Features
1. Anytime, anywhere, convenient and efficient network access
Multiple network access capabilities (cellular, Wi-Fi, wired) for different network environments, providing different speed network access for different service requirements.
2. Stable and reliable network connection service
Supports mutual backup between cellular, wired and Wi-Fi networks, cellular link failover, dual-SIM switching, VRRP backup mechanism, and multi-layer detection mechanism to ensure network stability and reliability.
3. Comprehensive security features
Multi-level security mechanisms, multiple VPN technologies for secure data transmission, access control, DDoS protection, SPI firewall, user privilege management. Provides comprehensive security protection from multiple dimensions.
4. Convenient cloud management
Unified cloud platform enables real-time management of tens of thousands of distributed site devices anytime, anywhere, making management easier, more efficient and more economical.
III. Application Scenarios
The SIE2000L5 is suitable for data acquisition and monitoring of distributed unattended field equipment. Digital application scenarios include:
More industry-specific digital application scenarios are listed below:
|
Industry
|
Specific Application Scenarios
|
| Smart Energy | EV charging stations, meter reading, power distribution automation, wind energy, oil & gas, solar energy |
| Smart City | Municipal heating, water supply, gas supply, security, traffic, e-police, smart parking |
| Smart Manufacturing | OEM discrete manufacturing machine networking, industrial robot networking, industrial automation factories, production lines |
| Smart Healthcare | Medical equipment networking and other fields |
IV. Application Solution
The SIE2000L5 is suitable for various industrial and commercial IoT applications, providing efficient and reliable solutions for digital IoT. The device-to-cloud solution helps enterprises connect devices to cloud platforms, monitor device status in real time, extract device value, accumulate device data, and provide better services to accelerate digital transformation.
Specific application solution:
Hardware Specifications:
| Hardware Platform | |
| CPU | 580MHz |
| RAM | 128MB DDR2 |
| FLASH | 64MB |
| Interfaces | |
| Ethernet Ports | 5×10/100Mbps Fast Ethernet ports, RJ45, WAN/LAN/VLAN ports, 1.5KV isolation transformer protection |
| Power Interface | DC9-36V, over-current protection, reverse connection protection, 2×PIN industrial terminal |
| Serial Ports | 1×RS232 and 1×RS485 |
| Reset Button | Pinhole reset button |
| SIM Card Slot | Drawer-type slot×1, supports 2×NANO SIM |
| Wi-Fi | IEEE 802.11b/g/n, 300Mbps speed |
| Antenna Connectors | 5G: SMA×2, Wi-Fi: RP-SMA×2 |
| Grounding Terminal | Supported |
| Mechanical Characteristics | |
| Dimensions | 127×108×35mm |
| Mounting | DIN rail |
| Enclosure | Metal case |
| Weight | 454g |
| Protection Rating | IP30 |
| Cooling | Fanless cooling |
| Power Consumption | |
| Standby Power | 120mA-200mA@12V |
| Operating Power | 150mA-320mA@12V |
| Peak Power | 320mA@12.0V |
| Wi-Fi | |
| Frequency | 2.4G |
| Max Transmission Rate | 300Mbps |
| Protocols | 802.11b/g/n |
| Transmit Power | 802.11b:16dBm±2dBm(11Mbps), 802.11g:16dBm±2dBm(54Mbps), 802.11n@2.4GHz:16dBm±2dBm(HT20MCS7), 802.11n@2.4GHz:16dBm±2dBm(HT40MCS7) |
| Transmission Distance | 50m line of sight (actual distance depends on environment) |
| Environmental Conditions | |
| Storage Temperature | -40～85℃ |
| Operating Temperature | -30～70°C |
| Humidity | 5～95% (non-condensing) |
| Indicators | |
| LEDs | Power, System, Network, Wi-Fi, Signal |
| Physical Characteristics | |
| Shock Resistance | IEC60068-2-27 |
| Drop Resistance | IEC60068-2-32 |
| Vibration Resistance | IEC60068-2-6 |
Software Specifications:
| Networking | |
| Network Access | Supports APN, VPDN |
| Access Authentication | Supports CHAP/PAP authentication |
| Network Standards | GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA/5G NR (SA/NSA) |
| LAN Protocols | ARP, Ethernet |
| WAN Protocols | PPP, PPPoE, DHCP |
| Network Protocols | |
| IP Applications | Supports Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet |
| IP Routing | Static routing, OSPF dynamic routing |
| NAT | Supports network address translation |
| Security | |
| Network Security | Stateful Packet Inspection (SPI), DoS protection, multicast/Ping packet filtering, ACL, content filtering, port mapping, virtual IP mapping, IP-MAC binding; 802.1x |
| Data Security | Supports PPTP, L2TP, GRE, IPSEC VPN, DMVPN, OPENVPN, WireGuard VPN functions |
| Reliability | |
| Hot Backup | Supports VRRP hot backup mechanism |
| Link Detection | Heartbeat packet detection, automatic reconnection |
| Dual-SIM Switching | Supports dual-SIM link switching |
| Watchdog | Self-checking technology, automatic fault recovery |
| WLAN | |
| Standards | IEEE 802.11b/g/n |
| Modes | Supports AP, Client, WDS modes |
| Security | Open system, shared key, WPA/WPA2 authentication; WEP/TKIP/AES encryption |
| Smart Features | |
| DTU | Supports TCP/UDP transparent transmission; Modbus RTU to Modbus TCP conversion; DCTCP/DCUDP mode |
| Management | |
| QOS | Supports bandwidth limitation, IP speed limiting |
| Configuration | Supports telnet, web, ssh and console configuration |
| Upgrade | Supports web upgrade, DM upgrade |
| Logging | Supports local system logs, remote logs, serial output logs. Important logs are saved during power loss |
| SMS | Status query, reboot |
| Dial-on-Demand | On-demand dialing, data activation, SMS activation |
| Management | Supports "Device Cloud" management platform for batch management |
| SNMP | Supports SNMP v1/v2c/v3, SNMP TRAP |
| Traffic Management | Supports traffic threshold setting, traffic statistics and alarms |
| Alarms | Supports system reboot, LAN port up/down, traffic alarm, SIM card failure alarms |
| Maintenance Tools | Ping, traceroute, speed test |
| Status Query | System status, modem status, network connection status, routing status |
