Industrial Intelligent Controller Model:SIE2000K4
Model：SIE2000K4
- Rockchip RK3588 CPU: 4×Cortex-A76 + 4×Cortex-A55 cores @2.4GHz
- Onboard 4GB LPDDR4 RAM
- Dedicated GPU with HDMI output

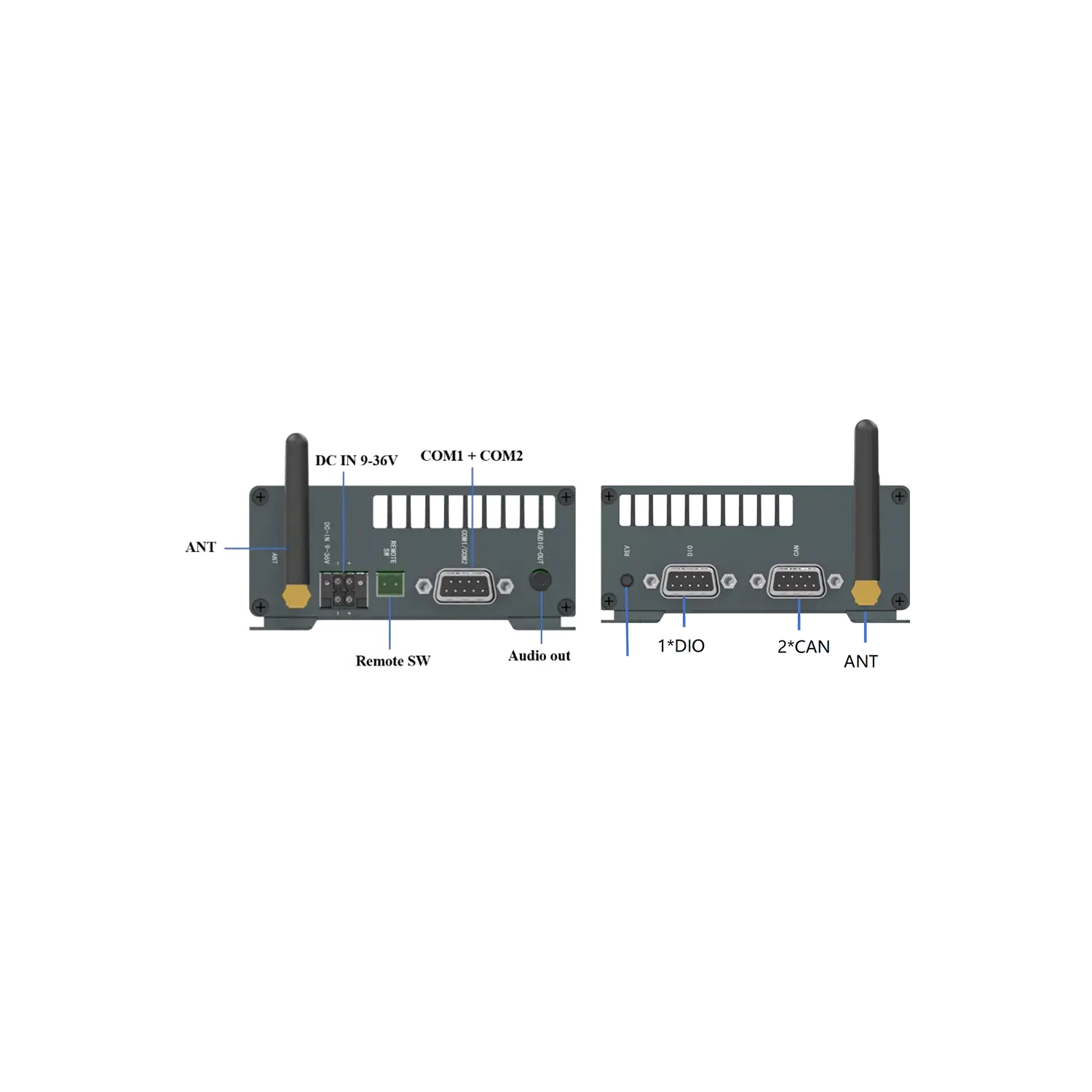

- 4×LAN, 2×USB3.0, 2×USB2.0, 2×COM, 1×8bit DIO
- 2×Isolated CAN2.0, 1×Audio out
- 1×Full-size Mini PCIe with SIM slot (4G LTE support)
- Optional onboard Gigabit WiFi6/Bluetooth 5.0
- 32GB eMMC + M.2 2242 M-Key dual storage
- Wide voltage input: DC 9-36V with reverse/overcurrent/overvoltage protection

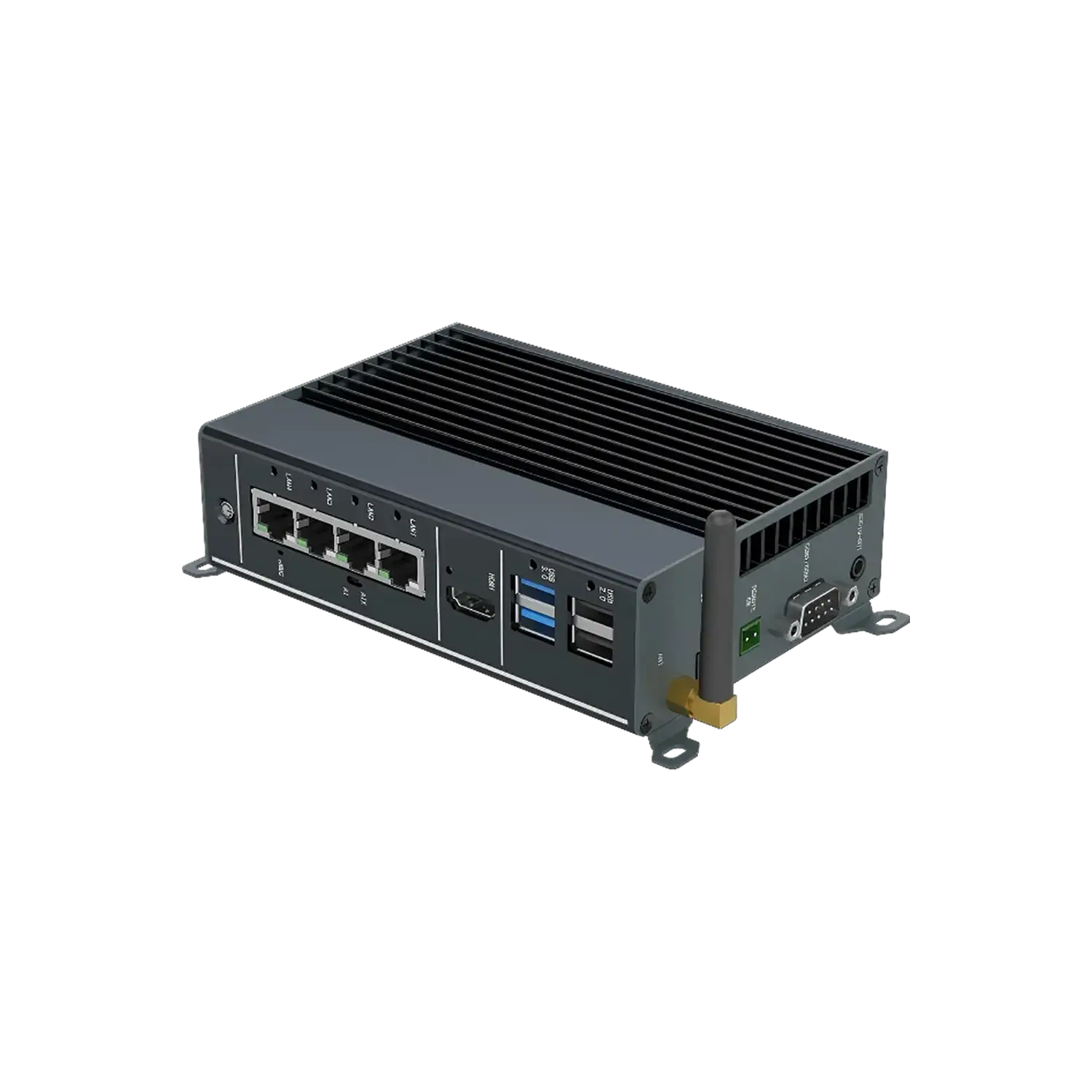

The SIE2000K4 is a fanless industrial computer featuring the Rockchip RK3588 processor with 4GB onboard RAM and 32GB eMMC storage. Key interfaces include HDMI, 4×LAN, 2×USB3.0, 2×USB2.0, 2×COM (1×RS485, 1×RS232), 1×8bit DIO, 2×isolated CAN2.0, 1×M.2 2242 M-Key slot, and 1×full-height Mini PCIe with SIM slot for 4G LTE (optional WiFi6/BT5.0). With DC 9-36V wide voltage input, it’s ideal for logistics vision inspection, AGV/AMR, and smart connected vehicle MEC applications.
• Aluminum alloy housing with fanless thermal design
• Rockchip RK3588 octa-core processor (4×A76@2.4GHz + 4×A55)
• Onboard 4GB LPDDR4 memory
• Mali-G610 GPU with HDMI (1920×1080@60fps)
• Rich I/O: 4×LAN, 4×USB, 2×COM, 1×8bit DIO
• Industrial interfaces: 2×2.5KV isolated CAN2.0, audio out
• Expansion: Full-size Mini PCIe with 4G LTE support
• Dual storage: 32GB eMMC + M.2 SSD slot
• Robust power design: DC 9-36V with full protection
| Industry | Applications |
| Smart Energy | EV charging, smart metering, power distribution |
| Smart Cities | Municipal utilities, traffic management |
| Smart Manufacturing | Industrial robotics, production automation |
| Smart Healthcare | Medical device connectivity |
| CPU | Rockchip RK3588 (4×Cortex-A76@2.4GHz + 4×Cortex-A55) |
| Memory | 4GB LPDDR4 onboard |
| Video | 8K VPU: H.265/AV1/VP9 decoding @60fps, H.264 encoding @30fps |
| NPU | 6.0 TOPS (INT4/INT8/INT16/FP16) |
| Wireless | Optional WiFi6/BT5.0 + 4G LTE via Mini PCIe |
| Audio | Realtek ALC5640 codec |
| Ethernet | 4×RJ45 (2×RTL8211F + 2×RTL8111H) |
| I/O | 2×COM (RS232/RS485), 2×CAN2.0, 8bit DIO |
| Power | DC 9-36V, reverse/overvoltage protected |
| OS Support | Android/Linux |
| Dimensions | 169×100×44.2mm (6.65×3.94×1.74in) |
| Environment | -30°C to +70°C operating, IP40 |
